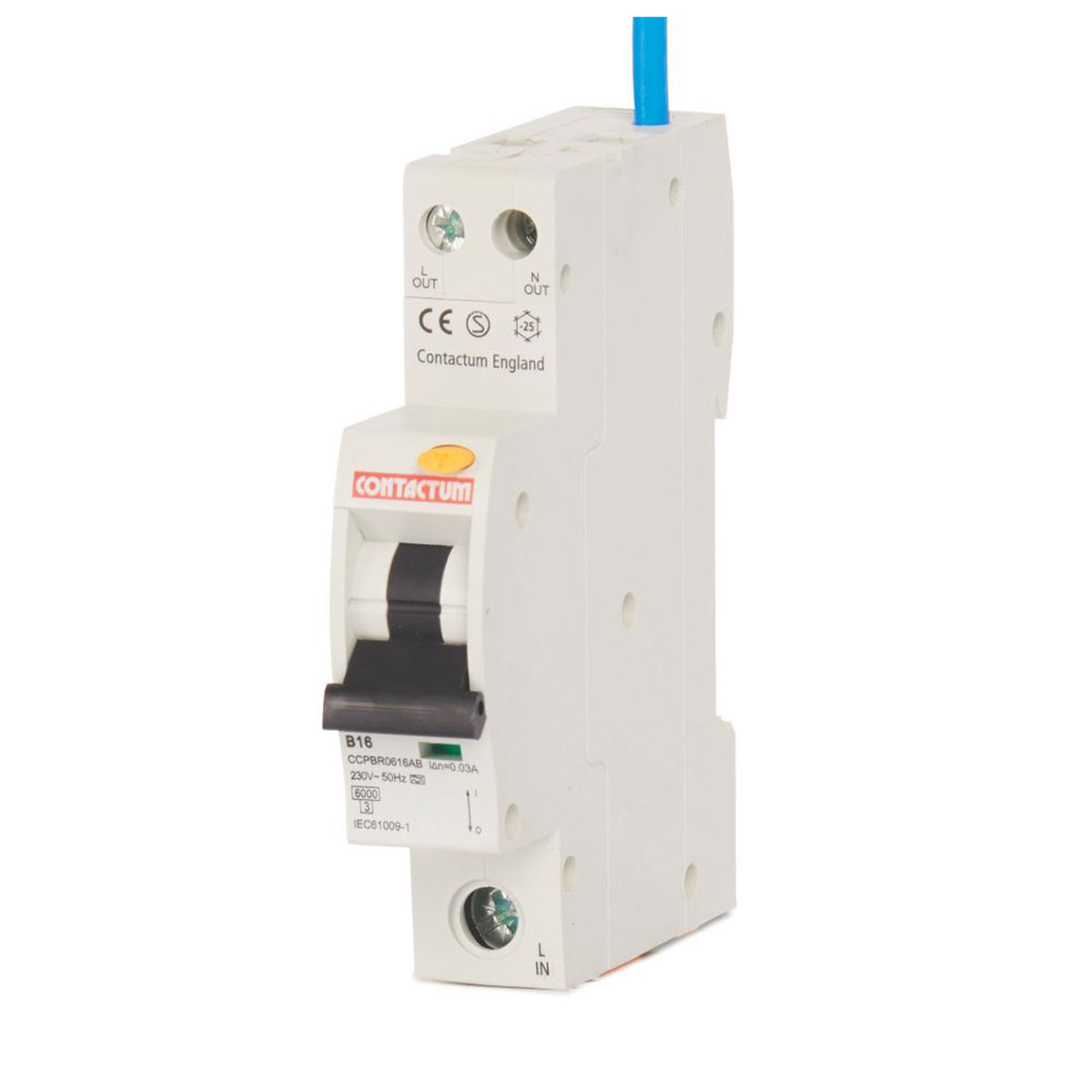

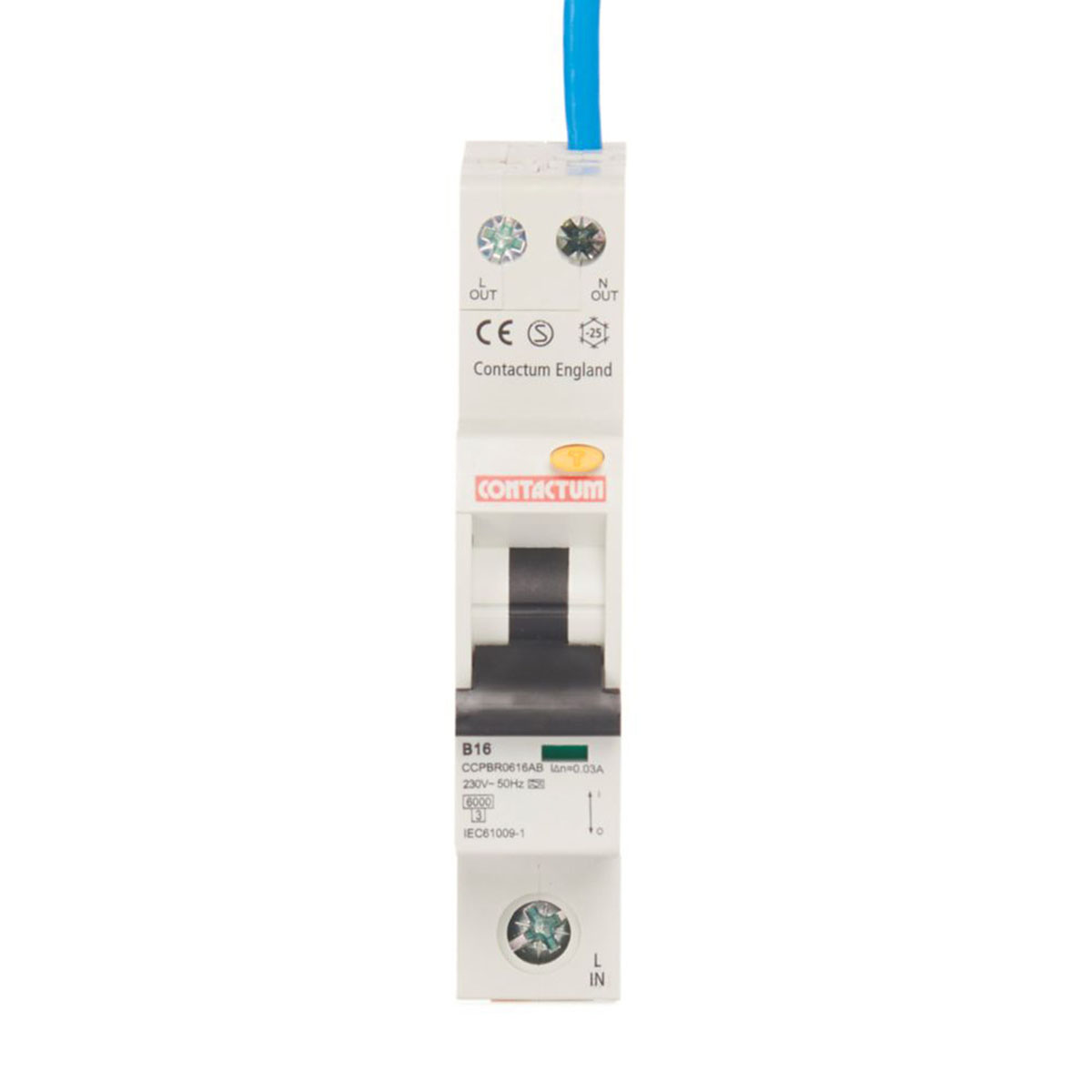

Contactum Compact RCBO Type A RCD Type B Curve 30mA Single-Phase 16A 4kV

By Contactum
High Street £23.99
Our Price £18.99
£23.99
View grading info
18th Edition Amendment 2. Suitable for use in Defender consumer units and distribution boards. DIN rail mounted. Designed to function where up to 6mA of DC leakage current may also be present.
  • Breaking Capacity (Inc): 6 kA
  • Curve Type: Type B
  • Earth Leakage Sensitivity (IDn): 30 mA
  • No. of Phases: Single-Phase
  • RCD Type: Type A
  • Rated Impulse Withstand Voltage (Uimp): 4 kV
  • Rated Operational Current (In): 16 A
  • Suitable Cable Size: L In: up to 25 mm², L/N Out: up to 10 mm²
  • Number of Poles: Single Pole
  • Capacity: Unknown
  • Features: Compact, Single-Phase, Durable
  • Compact RCBO White
  • Included: Compact RCBO
  • Date:
